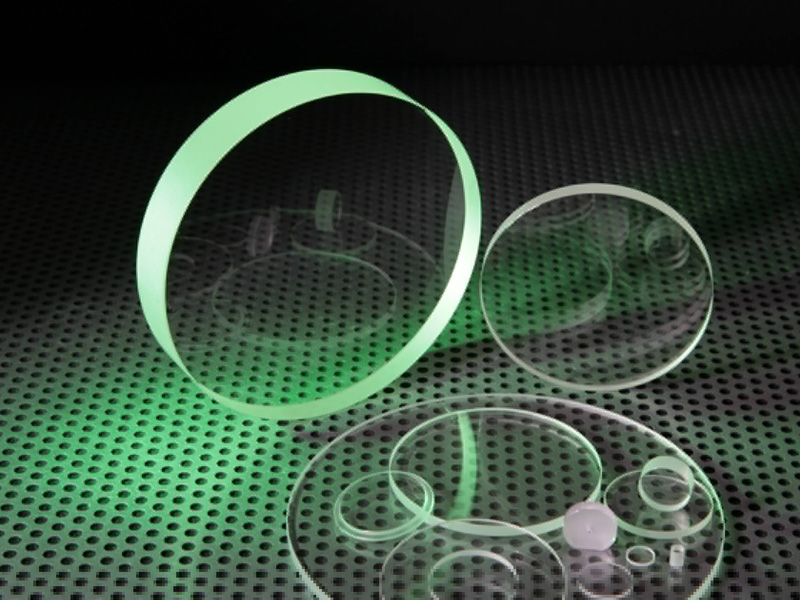

Sapphire Windows
Description
Sapphire has extreme surface hardness, highly thermal conductivity, high dielectric constant and resistance to common chermical acids and alkalis. Windows made from sapphire are ideal for demanding applications. JYS supplies double sides find polished sapphire windows.
Specifications:
| Material: | optial sapphire Crystal(Al2O3) |
| Dimension Range: | 2~300mm |
| Dimension Tolerance: | +0.0, -0.1mm |
| Thickness Range: | 0.50~100.00mm |
| Thickness Tolerance: | ± 0.2mm |
| Clear Aperture: | >80% |
| Parallelism: | up to 10" |
| Surface Quality: | 80-50 up to 20-10 scratch and dig |
| Wavefront Distortion: | up to λ/10 per 25mm |
