- Coating Type ..
Description
Coating Type

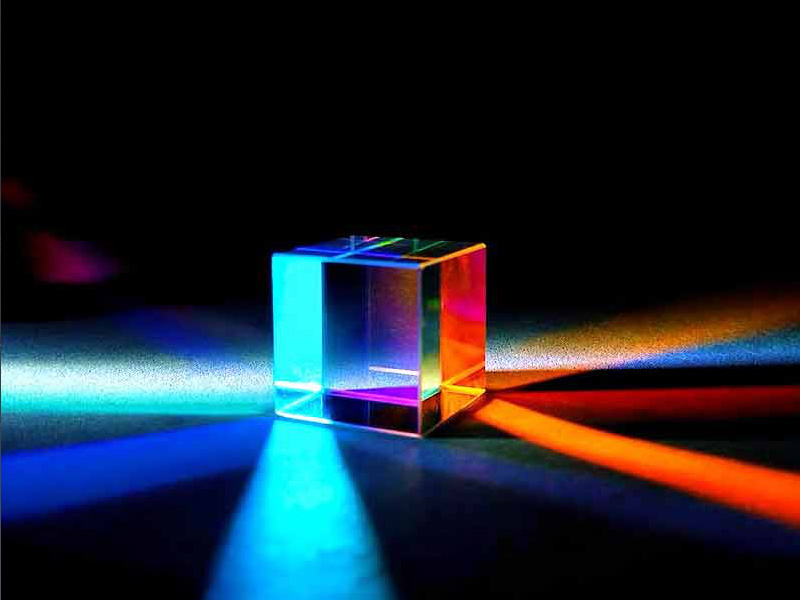

Beamsplitter

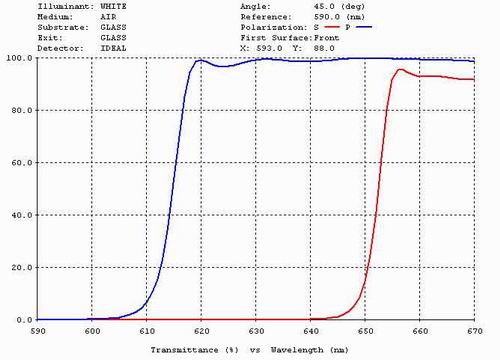

1)Single wavelength polarization beamsplitter coating
Rs>99.5@632.8nm & Rp<5%@632.8nm, 45deg. incidence
Rs>99.5@632.8nm & Rp<5%@632.8nm, 45deg. incidence

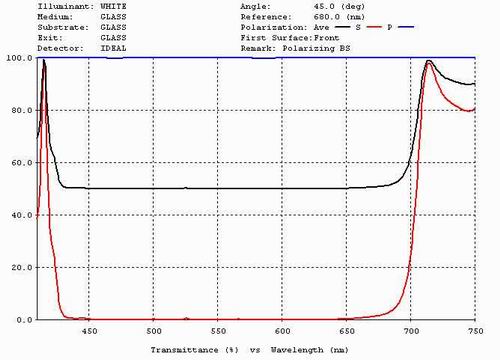

2)Broadband polarization beamsplitter coating
Rs>99%@450~650nm & Rp<5%@450~650nm, 45deg. incidence
Rs>99%@450~650nm & Rp<5%@450~650nm, 45deg. incidence

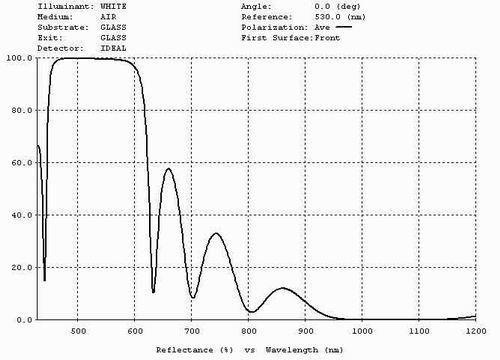

3)Short-wave pass beamsplitter coaitng
R>99.8@1064nm & R<5%@532nm, 0deg. incidence

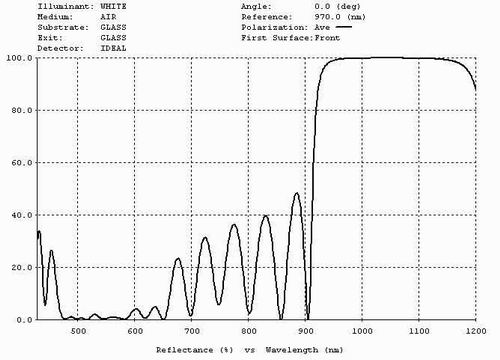

4)Long-wave pass beamsplitter coating
R>99.8%@532nm & R<5%@1064nm
Other wavelength and incident angle are also available.
