Prisms

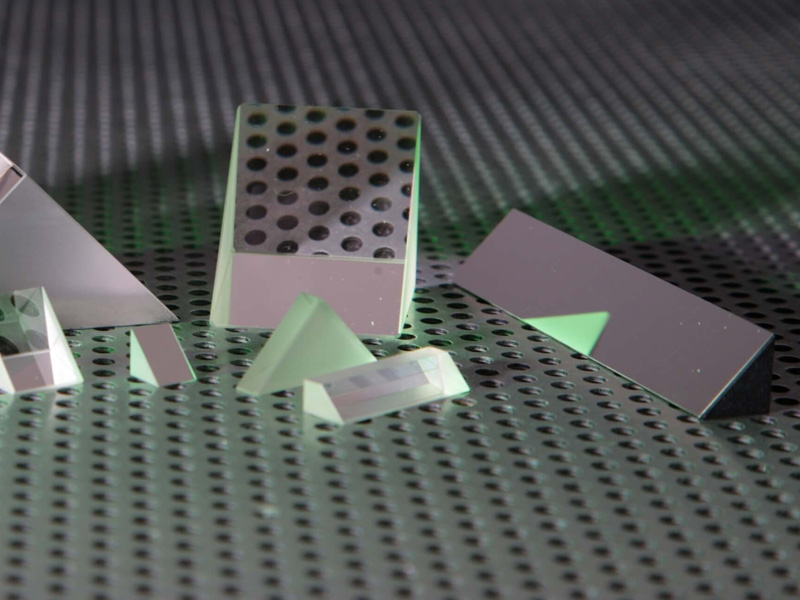

Right Angle Prism
Description
A Right-Angle Prism is used as a mirror to deviate light through 90 degree, and also as a retroreflector to deflect light through 180 degree by total internal reflection.
90-degree Deflection
90 degree deflection occurs at the hypotenuse face. The image is erected and reversed.
180-degree Deflection
180 degree deflection uses with hypotenuse as the entrance and exit face. The mail application of it is used as a retroreflector provided that the plane of incident beam includes the vertex.
Specification:
| Material: | BK7 glass or UV fused silica |
| Dimension Tolerance: | +0.0, -0.2 mm |
| Clear Aperture: | >80% |
| Beam deviation: | 3', 1' or 30" |
| Flatness: | λ/2 @632.8 nm |
| Surface Quality: | 60-40 scratch and dig |
| Protective Bevel |
